H2S Equipment

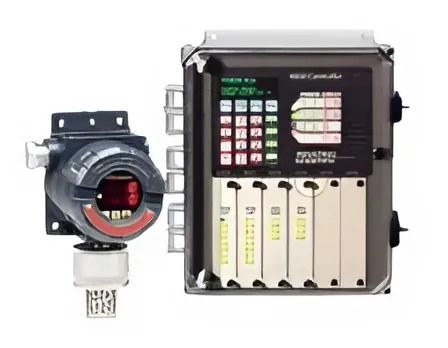

Industrial Scientifics 4800 Controller

Enclosure : Fiberglass NEMA4x (weather resistant lockable)
Dirnension : 14’xI?x8″ (356mm x 305mm x 203mm)
Weight : Approximately 24 lbs (II kg)
Number of Input : 4,80r64
Input range : 0-25mA, i.e 0-20mA or 4-20mA
Sensor excitation voltage : 24 VDC
Display : LCD, Fluorescent Backlit, Auto shutoff
Output : 64 relays, 1 from contact arrangement Serial Port.
Contact Ratings : 5Aat 120 VAC or 5Aat 30 VDC
Output connectors : RS-232; 9 pin D Sub-miniature, Male Relay, quick disconnect, screw terminal
Power Consumption : <120W (64 sensor channels), <200W (64 sensor channels), <360W (64 sensor channels)
Input Voltage : 120V / 220V, 60Hz, single phase
Approval : CSAand NRTlJC-Single Appliance.

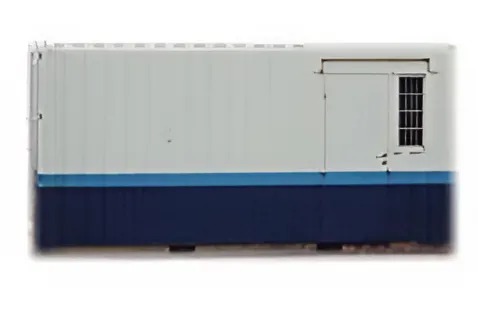

Dimension : 6.05 x2.43 x 2.56 meters (L x w x H) Weight 900 Kgs
Construction : Steel, Air conditioned Office Room & Separated

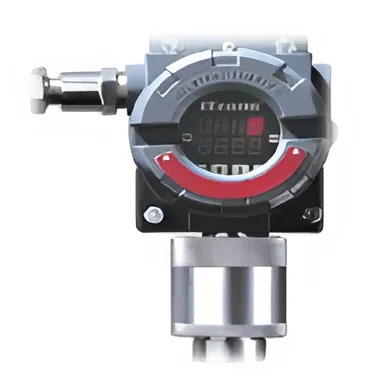

Sensor Type : H2S (Toxic gases) Electrochemical diffusion
Enclosure : Cast Aluminum Poly-bonded coating, Explosion Proof
Dinmsion : 4.5- x 525″ x 3″ (114 mmx 133 mmx76mm)
Weight : Approximately 5 pounds
Sensor Housing Material : Aluminum, Anodized
Measuring Range : O — 500 ppm in 1 ppm increments
Accuracy : Typically max <4% Of reading
Response time : Various depending on sensor from 20— 150 second Long Term Sensitivity Drift : Less than 2%
signal/month
Display : Split-screen LED with 4 digits and 7 segments
Input Voltage : 12— 28 VDC operating range ( 24 VDC typical)
Input Current : 150rnAat24 VDC
Signal Output : 4 — 20mA, linear analog and ModBus RTLJ (digital) RS485 digital communication with ModBus RTU
software protocol system at 9600 baud.
Temperature Range : -40 to 1220 F (-200 to 500 C)
Humidity Range : 15 — 90% RH (non-condensing)
Approvals : NRTUc and CSA: Class l, Div. 1, 2, Groups B,c, D; AExd 11B, ATEX: EEx 11B H2 T5(sensor
specific).

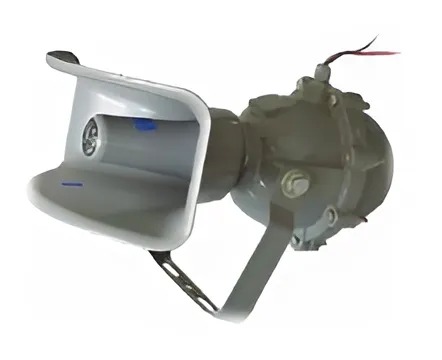

Wide Angle Sound dispersion Pattern
Explosion proof and Weather Proof For Indoor and Outdoor use
Built-in 24 Watt driver
Polarity protected (dc unit)
Aluminium and Fiberglass Housing
Reflex Projector for maximum efficiency
Omni-directional mounting bracket
Class I, Groups C and D; Gas Atmospheres (Incl. Ethyl, Ether, Gasoline, Naphta, Alcohols, Butane, Propane
Class II, Groups E, F and G; Dust Atmospheres (Ind. Metal, Carbon, Grain)

Class I Group C & D (gas hazards)
Class II Group E, F & G (dust hazards)

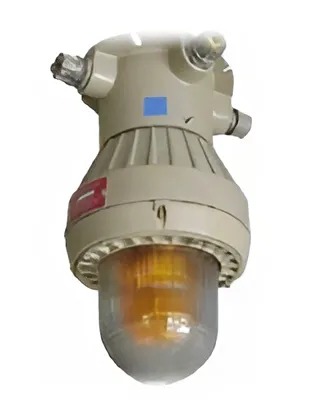

Lamp Wpe: 700-RI-COLOR Xenon trobe Lamp Assembly ( specify color )
Voltage and Amperage: 12-74 VDC Draws 1.25 A avg.@ 12 VDC tapering to 0.2 A
avg. @ 74 VDC
Power Supply Output: 13 Watts Standart, 11 Watts for 3150 9 Joules per Flash Std,
8 Joules per flash for 3150
Temperature Range: -40 Oc to +55 OC
Temperature Code : To-Class I Groups C & D T4A-Class II Groups E, F, & G
Flash Rate : 85 Flashes per Minute
Intensity : CLEAR 200 candela elf AMBER 170 candela elf , BLUE 90 candela elf, RED 40 candela elf, GREEN70 Candela elf
Size and Weight : 14$-Ta1LX
(368 mm) (222 mm) (5.9 kg)
